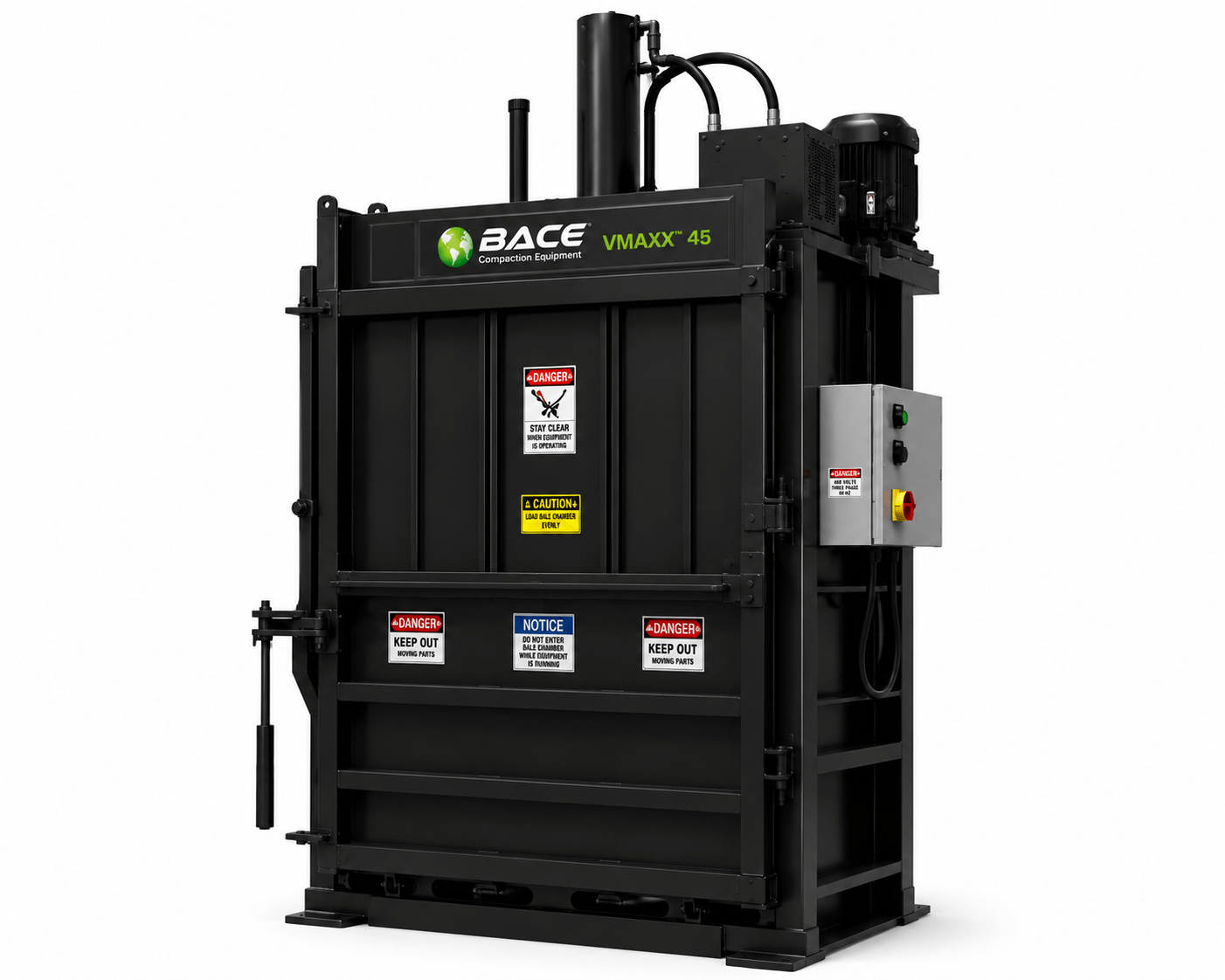

BACE Vertical Baler VMAXX-45

Clear
SKU: vmaxx45-556

The VMAX45 is designed to meet the specifications of your client’s back haul program without compromising the rigorous bailing expectations of the backroom personnel.

This baler produces bales specifically weighted and dimensioned to fit 45 into a container improving container weights from the client’s approximately 30,000 lbs to over approximately 55,000 lbs thereby providing up to a 73% increase.

Available Options
  • IntelliBALE with 10 000 lb Load Cells,
  • International Safety Option With CAT3,
  • Oil Heater,
  • Rear Wire Guides,
  • Regen Circuit,
  • Single Phase Power Unit,
  • Slotted Front Door,
  • Weather Proof Package

Lead Time: 2-4 weeks

Discounts Available – Call Now!

BUY NOW



The VMAX45 is designed to meet the specifications of your client’s back haul program without compromising the rigorous bailing expectations of the backroom personnel.

This baler produces bales specifically weighted and dimensioned to fit 45 into a container improving container weights from the client’s approximately 30,000 lbs to over approximately 55,000 lbs thereby providing up to a 73% increase.

Additional information

Color/Finish
  • Maroon
  • Royal Blue
  • Black
  • Forest Green
  • White
  • Bright Cyan
  • Bright Red
  • Brown
  • Dark Gray
  • Orange
  • Peach
  • Sea Green
  • Sky Blue
  • Slate Gray
Baler
  • VMAXX-45
  • VMAXX-26

Download all the specifications for this product.

DOWNLOAD PDF

Reviews

There are no reviews yet.

Be the first to review “BACE Vertical Baler VMAXX-45”

Your email address will not be published. Required fields are marked *

Performance Specs

Description Value

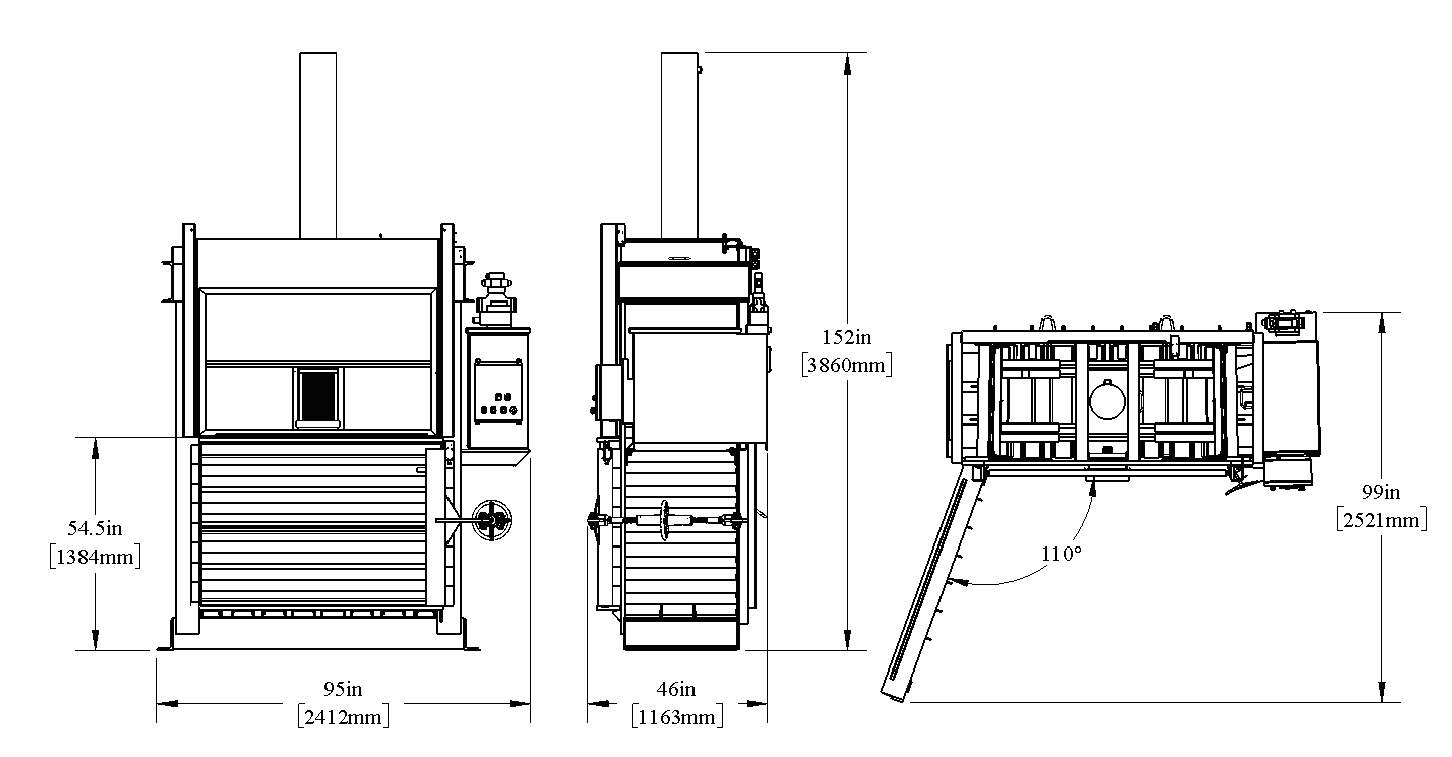

Nominal Bale Size 60″ x 30″ x 48″
Bale Weight Up to 1500 lbs OCC
Bale Volume 50 cu. ft.
No. of Bale Tie Slots 5
Compact Force lbs – Normal / Maximum 125,663 / 150,798
Platen Pressure 70 PSI
Average Cycle Time 55 Seconds
Loading Height 54.5″
Full Bale Switch Standard



Hydraulic / Electrical Specs

Description Value
Motor HP 10HP Submersible
Voltage 3 Phase 208V, 230V, 480V
Full Load Amps (A=Amps) 32A, 28A, 14A
Normal System Pressure PSI 2500
Max. System Pressure PSI 3000
Cylinder Bore x Stroke 8″ x 48″
Hydraulic Tank-Capacity Gallons 40 gal
Additional hydraulic/electrical configurations are available. Please contact BACE for more information.
