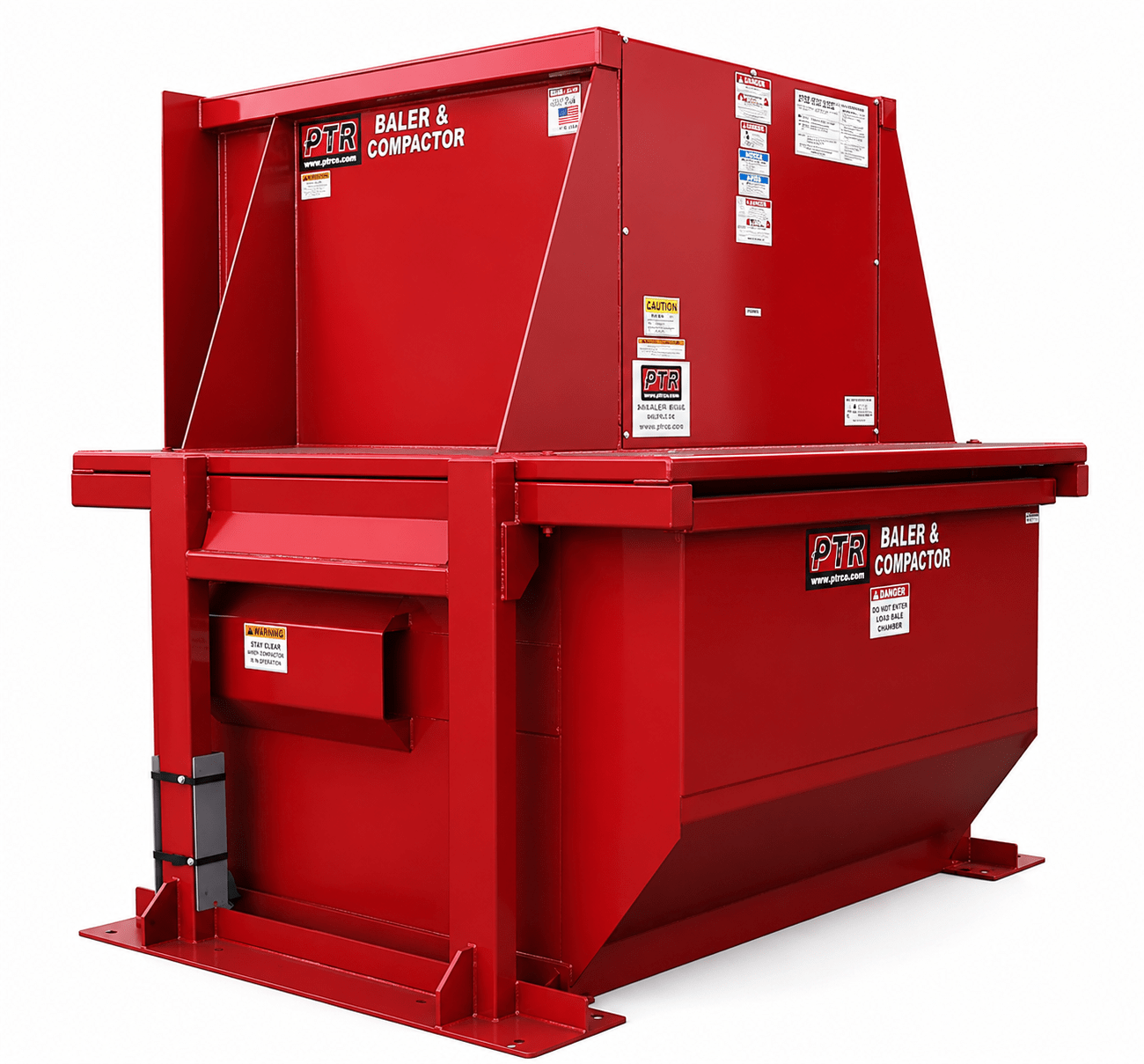

The Vertical Compactor Series has been engineered to provide many years of reliable service. The heavy-duty structural steel components are welded by certified AWS (American Welding Society) technicians and tested to ensure high compaction forces. Please see sale drawing for compactor head orientation.
| Color/Finish |
|
|---|---|
| Model |
|
|
Specifications
|
VCP-4, VCP-6, VCP-8
|
|---|---|
|
Charge Box Capacity
|
.73 Cu-YD [.6 Cu-m]
|
|
Feed Opening
|
(L X W) 26″ X 48″ [66 cm x 122 cm]
|
|
Capacity Per Hour
|
120 cy/hr
|
|
|
|
|
Performance Characteristics
|
VCP-4, VCP-6, VCP-8
|
|---|---|
|
Average Cycle Time
|
30 sec
|
|
Total Normal Force
|
28,920 lbs [128,643 N]
|
|
Total Maximum Force
|
33,786 lbs [150,288 N]
|
|
Normal Ram Pressure
|
17 psi [117 Kpa]
|
|
Maximum Ram Pressure
|
19 psi [131 Kpa]
|
|
|
|
|
Electrical Equipment
|
VCP-4, VCP-6, VCP-8
|
|---|---|
|
Electric
|
208 / 230 / 460 – 3 Phase
|
|
Control Voltage
|
110 – 120 Vac
|
|
Motor
|
3 HP
|
|
|
|
|
Hydraulic Equipment
|
VCP-4, VCP-6, VCP-8
|
|---|---|
|
Pump
|
3.2 GPM [12.1 L/m]
|
|
Normal Pressure
|
2,100 psi [13,790 KPa]
|
|
Maximum Pressure
|
2,400 psi [15,858 KPa]
|
|
Cylinder Bore
|
4″ [10.2 cm]
|
|
Cylinder Rod
|
2″ [5 cm]
|
|
Weight
|
5,000 Lbs [2268 Kg]
|
|
|
|
|
Specifications
|
VCP-4
|
VCP-6
|
VCP-8
|
|---|---|---|---|
|
Compactor Height
|
91 7/8″ [233 cm]
|
101″ [257 cm]
|
123 1/4″
|
|
Height to Top of light
|
97″ [246 cm]
|
106″ [269 cm]
|
128″
|
|
Width
|
101″ [257]
|
101″ [257 cm]
|
101″ [257 cm]
|
|
Compactor Depth
|
85 1/2″ [217 cm]
|
85 1/2″ [217 cm]
|
85 1/2″ [217 cm]
|
|
Overall Compactor Width
|
96 1/2″ [245 cm]
|
96 1/2″ [245 cm]
|
96 1/2″ [245 cm]
|
|
Load Height
|
45 1/4″ [115 cm]
|
58 1/4″ [148 cm]
|
76 1/2″ [194 cm]
|
