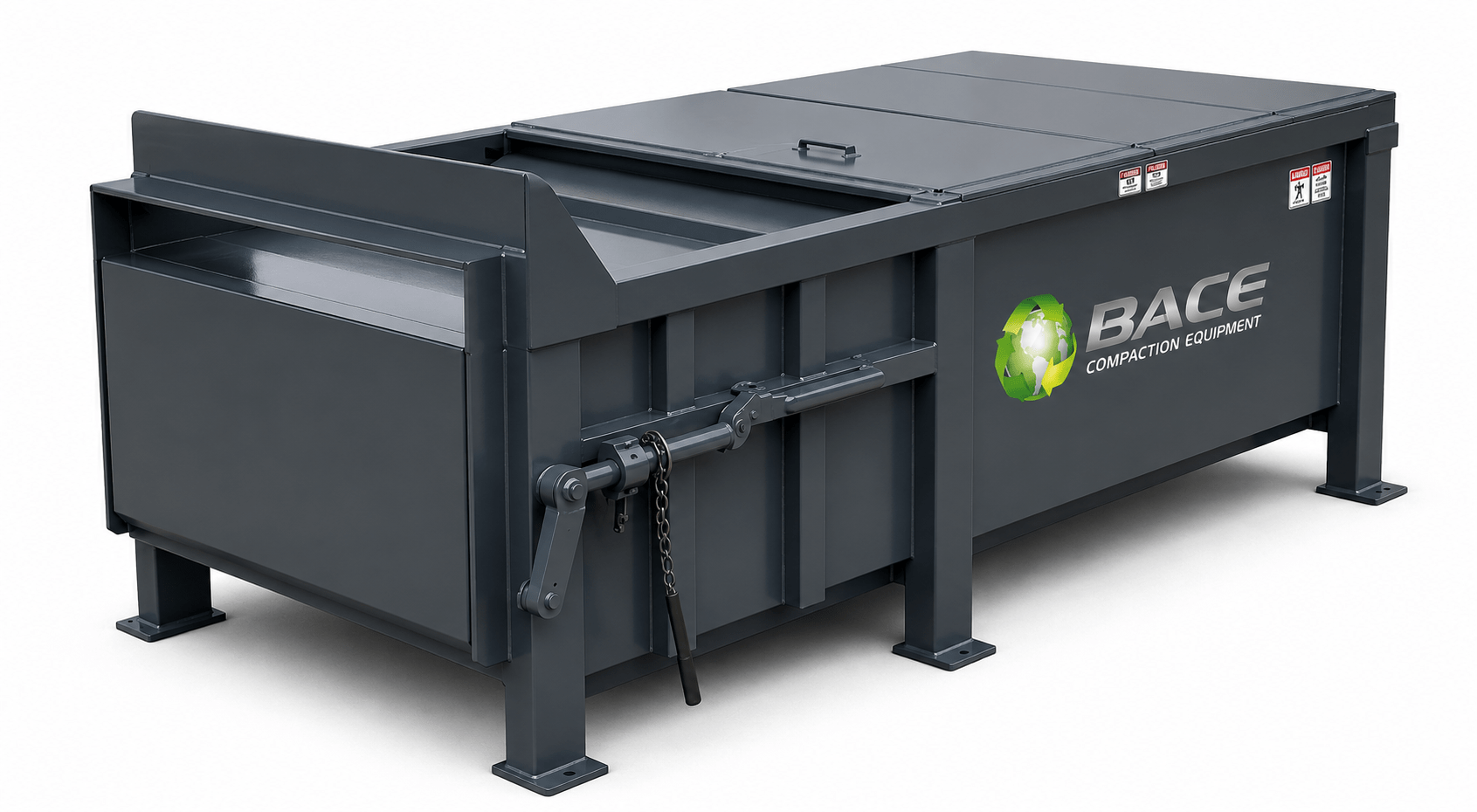

The BACE C2, 2-yard compactor features a 46” x 60” clear charge box opening, 48” loading height, and 54,000 lbs. of compaction force. The C2 and a 40-yard compactor receiver container are the superior combination of recycling and waste handling equipment for such applications as distribution centers, warehousing and industrial facilities.
| Color/Finish |
|
|---|---|
| Model |
|
| Description | Value |
|---|---|
| MFG Rating CU/YD | 2 |
| Ram Face (H”xW”) | 30 x 60 |
| Ram Penetration (in) | 11 |
| Cylinder Bore//Stroke/Rod (in) | 6 x 56 x 3 |
| Motor (HP) | 10 |
| Pump GPM | 10.5 |
| Avg. Cycle Time (sec) | 65 |
| Clear Top Opening (in) | 40 x 60 |
| Discharge Opening (in) | 37 x 60 |
| Hydraulic Pressure PSI Normal/Maximum | 1800 / 2200 |
| Force Rating (lb) Normal/Maximum | 50,893 / 62,203 |
| Approx. Compactor Shipping Weight (lbs) | 5500 |
| Description | Value |
|---|---|
| Charge Box Sides (in) | ¼ |
| Charge Box Floor (in) | ½ |
| Ram Face (in) | ½ |
| Ram Bottom (in) | ⅜ |
| Ram Top (in) | ¼ |
| Breaker Bar Structural Angle | 6″ x 8″ x 1″ |
| Additional hydraulic/electrical configurations are available. Please contact BACE for more information. | |
