SKU: SC-441

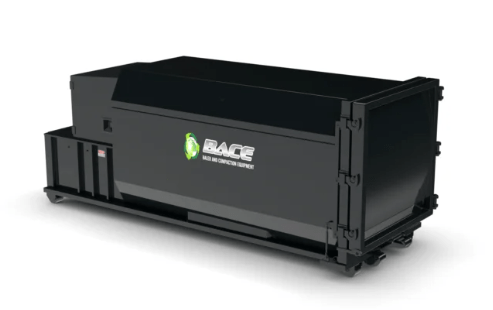

The BACE SC series of self-contained compactors is the answer to your wet-refuse requirements. The BACE SC units are ideal for grocery markets, malls, movie theaters, restaurants, hospitals, food processing plants, and retail supercenters that process or produce excessive wet waste and/or want to create an organics program. The Waste Flush Sump System with Waste Flow Design offers a 750 -gallon liquid sump reservoir underneath and behind the compaction ram. This putrescible waste is compacted to be emptied at the your local landfill. The unique BACE “T” seal around the door is a specially designed composite that ensures a liquid-tight, self-cleaning seal. For those who want to maximize hauling weight and reduce hauling fees, please inquire about our Patented Weight Based IntelliPACT™ System.

Available Options
  • Advanced / Full Lights,
  • Doghouse; Hoppers; Chute; etc.,
  • Fabricated Options,
  • Hauler Packout Controls,
  • Oil Heater,
  • Ozone Odor Control

Lead Time: 13-14 weeks

Discounts Available – Call Now!

BUY NOW

The BACE SC series of self-contained compactors is the answer to your wet-refuse requirements. The BACE SC units are ideal for grocery markets, malls, movie theaters, restaurants, hospitals, food processing plants, and retail supercenters that process or produce excessive wet waste and/or want to create an organics program. The Waste Flush Sump System with Waste Flow Design offers a 750 -gallon liquid sump reservoir underneath and behind the compaction ram. This putrescible waste is compacted to be emptied at the your local landfill. The unique BACE “T” seal around the door is a specially designed composite that ensures a liquid-tight, self-cleaning seal. For those who want to maximize hauling weight and reduce hauling fees, please inquire about our Patented Weight Based IntelliPACT™ System.

Additional information

Color/Finish
  • Maroon
  • Royal Blue
  • Black
  • Forest Green
  • White
  • Bright Cyan
  • Bright Red
  • Brown
  • Dark Gray
  • Orange
  • Peach
  • Sea Green
  • Sky Blue
  • Slate Gray
Model
  • SC-20
  • SC-30
  • SC-35

Download all the specifications for this product.

DOWNLOAD SC-20 PDFDOWNLOAD SC-30 PDFDOWNLOAD SC-35 PDF

Reviews

There are no reviews yet.

Be the first to review “Self-Contained Compactor”

Your email address will not be published. Required fields are marked *

Performance Specs

Description Value
MFG Rating CU/YD 2CY
Ram Face (H”xW”) 27.5 x 60
Ram Penetration (in) 6
Cylinder Bore//Stroke/Rod (in) 4 x 32 (2)
Motor (HP) 10
Pump GPM 10.5
Avg. Cycle Time (sec) 32
Clear Top Opening (in) 40 x 60
Discharge Opening (in) 37 x 60
Hydraulic Pressure PSI Normal/Maximum 1800 / 2200
Force Rating (lb) Normal/Maximum 45,241 / 55,294
Approx. Compactor Shipping Weight (lbs) 8190



Construction Specs

Description Value
Charge Box Sides (in) 3/16
Charge Box Floor (in) 1/2
Ram Face (in) 3/8
Ram Bottom (in) 3/8
Ram Top (in) 1/4
Breaker Bar Structural Angle 4″ x 6″ x 3/4″
Additional hydraulic/electrical configurations are available. Please contact BACE for more information.
