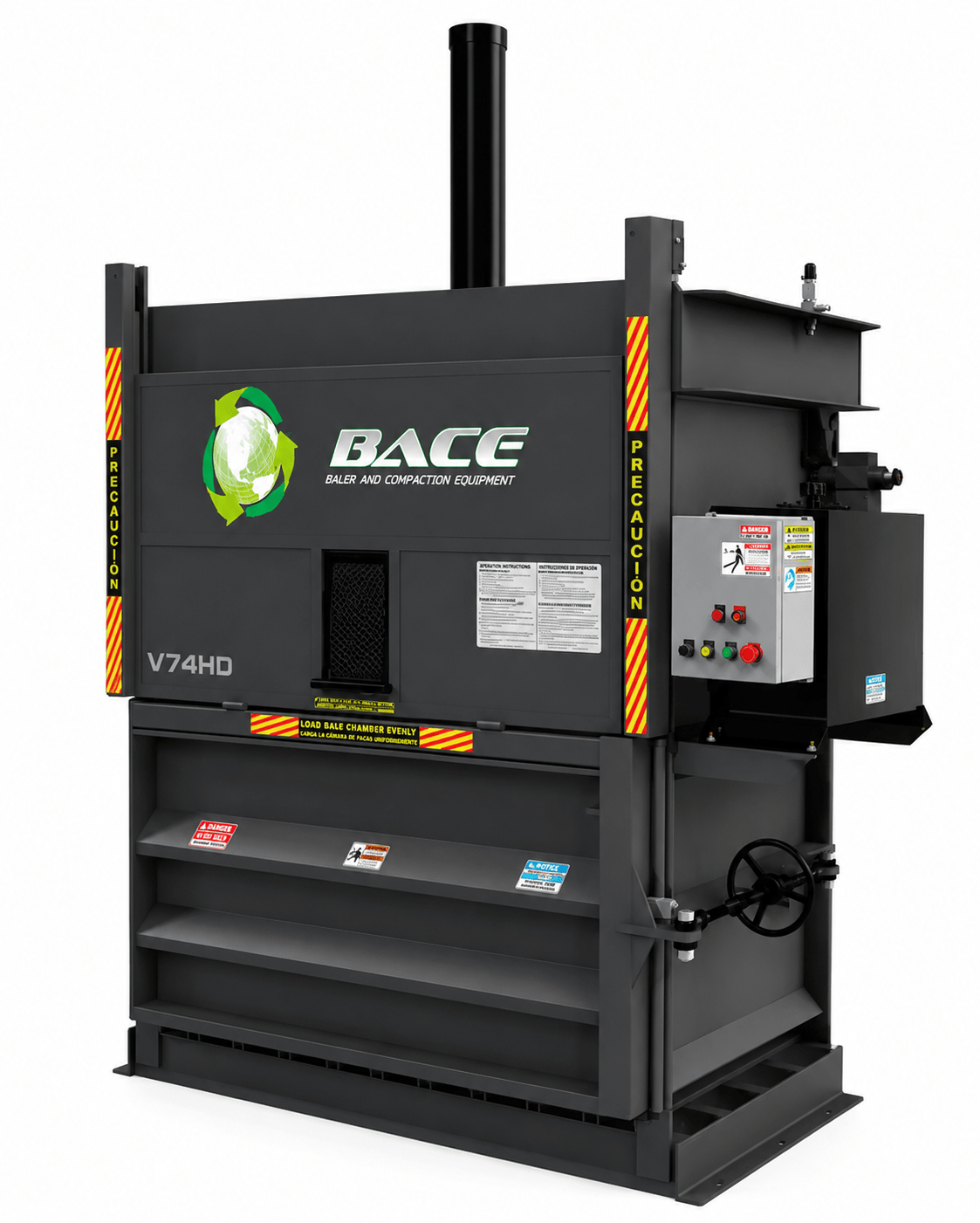

When the opening of a standard size Vertical Baler is not quite big enough, the V74HD is the design of choice. With its oversized opening, this baler can handle large Gaylord or furniture sized boxes, large pieces of plastic or other large recyclable items.
Ideal for: Big Box Retailers, Commissaries, Distribution Centers, Grocery Stores, Home Retailers, Hospitals, National Accounts, Pharmacies, Recyclers, Schools, Universities, Warehouses
| Color/Finish |
|
|---|---|
| Baler |
|
| Description | Value |
|---|---|
| Nominal Bale Size | 72″ x 40″ x 48″ |
| Bale Weight | Up to 1500 lbs OCC |
| Bale Volume | 80 cu. ft. |
| No. of Bale Tie Slots | 7 |
| Compact Force lbs – Normal / Maximum | 62,203 |
| Platen Pressure | 22 PSI |
| Average Cycle Time | 49 Seconds |
| Loading Height | 49.50″ |
| Ejector System | Semi-Automatic |
| Description | Value |
|---|---|
| Motor HP | 10 |
| Voltage 3 Phase | 208V, 230V, 480V |
| Full Load Amps (A=Amps) | 32A, 28A, 14A |
| Pump GPM | 12 / 4 HiLo |
| Normal System Pressure PSI | 2200 |
| Cylinder Bore x Stroke | 6″ x 48″ |
| Hydraulic Tank-Capacity Gallons | 22 |
| Additional hydraulic/electrical configurations are available. Please contact BACE for more information. | |
