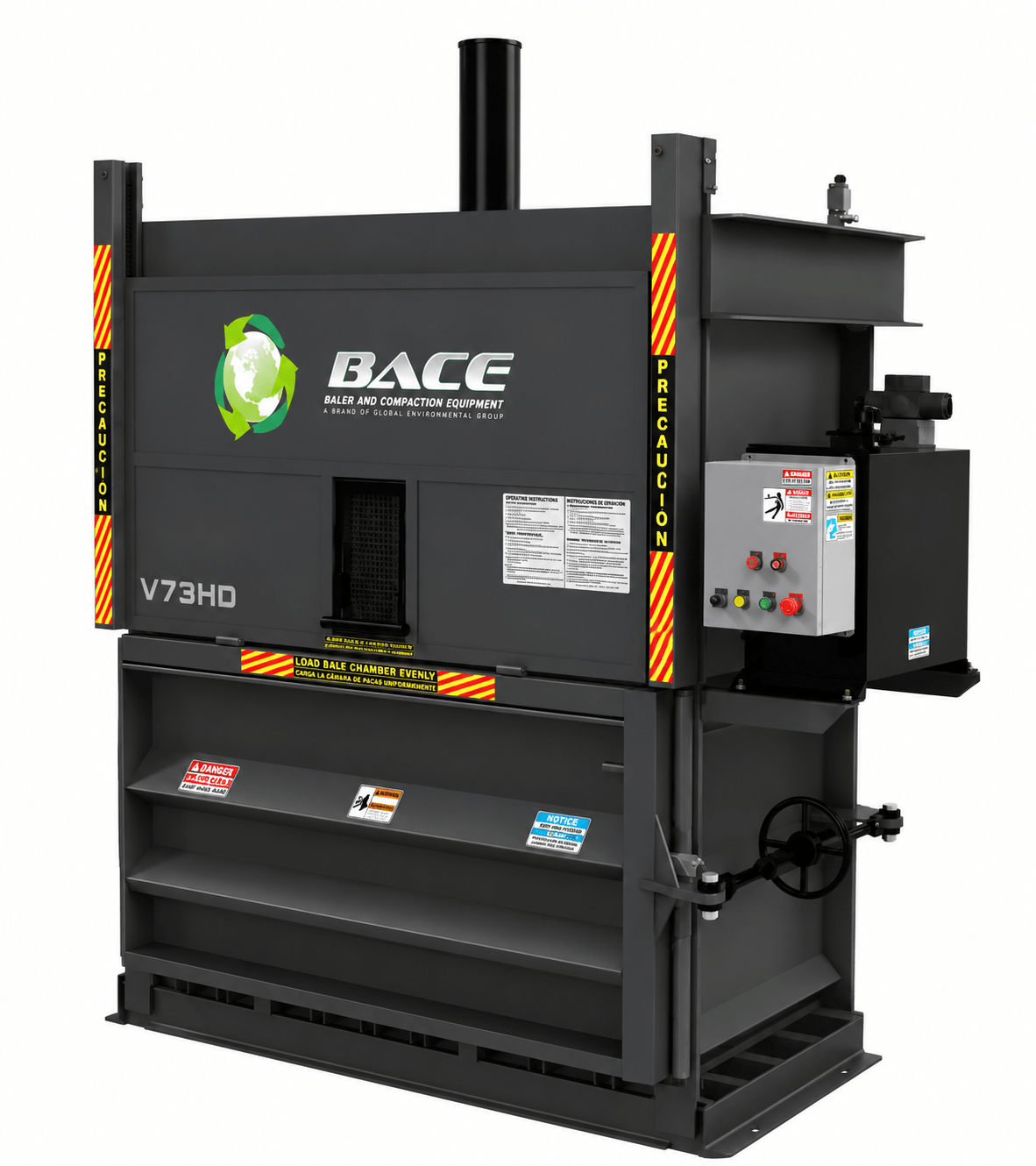

This unit is 72” wide to accommodate larger, more lengthy boxes or other materials. This unit is ideal for audio or television boxes and other larger cardboard cartons.
- Ideal for: Big Box Retailers, Commissaries, Distribution Centers, Grocery Stores, Home Retailers, Hospitals, National Accounts, Pharmacies, Recyclers, Schools, Universities, Warehouses
Performance Specs
| Description | Value |
|---|---|
| Nominal Bale Size | 72″ x 30″ x 48″ |
| Bale Weight | Up to 1300 lbs OCC |
| Bale Volume | 60 cu. ft. |
| No. of Bale Tie Slots | 7 |
| Compact Force lbs – Normal / Maximum | 62,203 |
| Platen Pressure | 28 PSI |
| Average Cycle Time | 49 Seconds |
| Loading Height | 49.50″ |
| Ejector System | Semi-Automatic |
Hydraulic / Electrical Specs
| Description | Value |
|---|---|
| Motor HP | 10 |
| Voltage 3 Phase | 208V, 230V, 480V |
| Full Load Amps (A=Amps) | 32A, 28A, 14A |
| Pump GPM | 12 / 4 HiLo |
| Normal System Pressure PSI | 2200 |
| Cylinder Bore x Stroke | 6″ x 48″ |
| Hydraulic Tank-Capacity Gallons | 22 |
| Additional hydraulic/electrical configurations are available. Please contact BACE for more information. | |
Available Options
- Counter Weighted Floppy Retainer Dogs,Feed Chute,Oil Heater,Rear Feed Opening, Front Eject,Slotted Front Door,Weather Proof Package,Wire Guides (allows for front bale tie-off)
Due to continual product improvement BACE reserves the right to change specifications without notice.
The information and pictures presented on this page are for illustrative purposes only.
