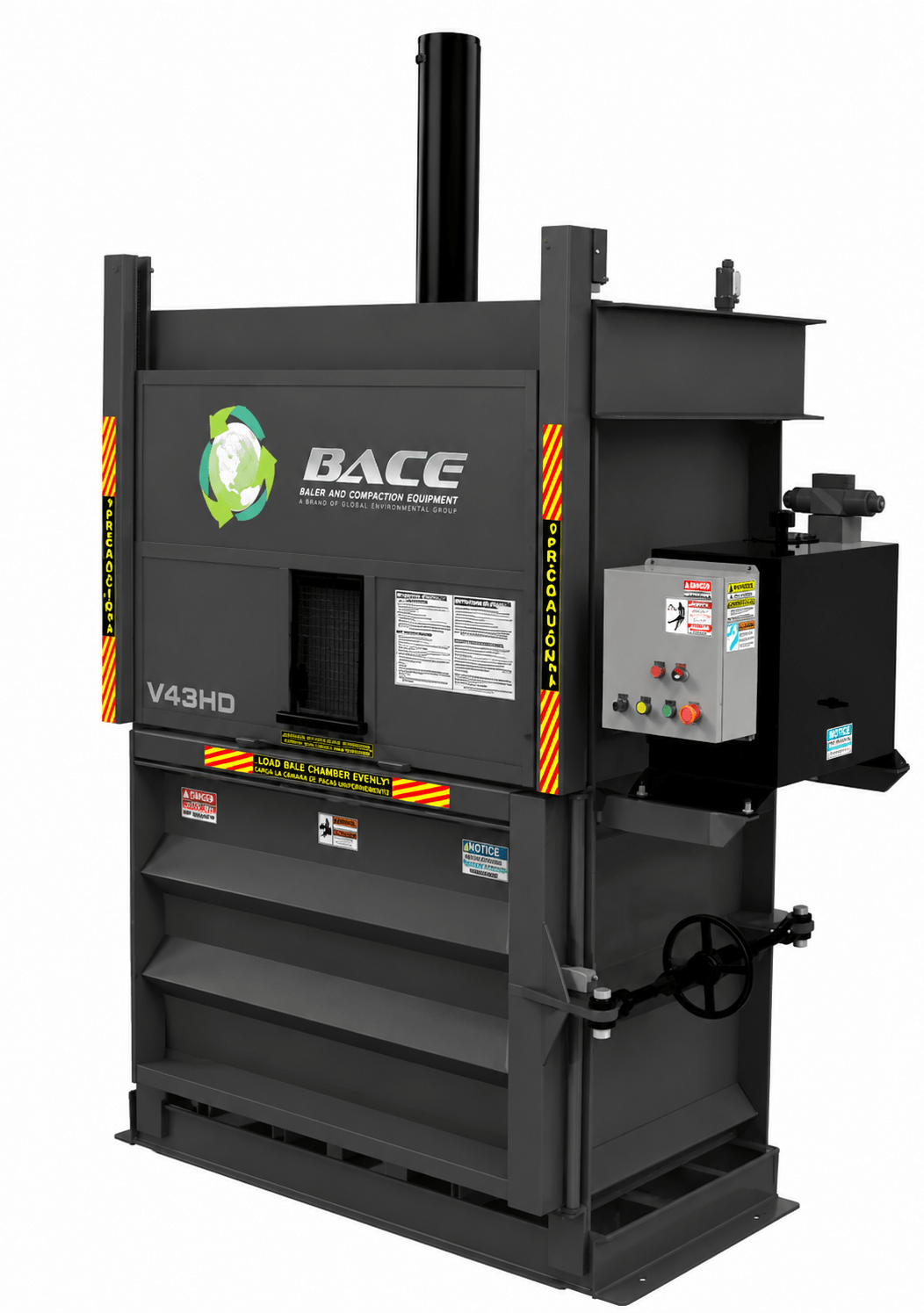

BACE Vertical Baler V43HD

SKU: v43hd-552

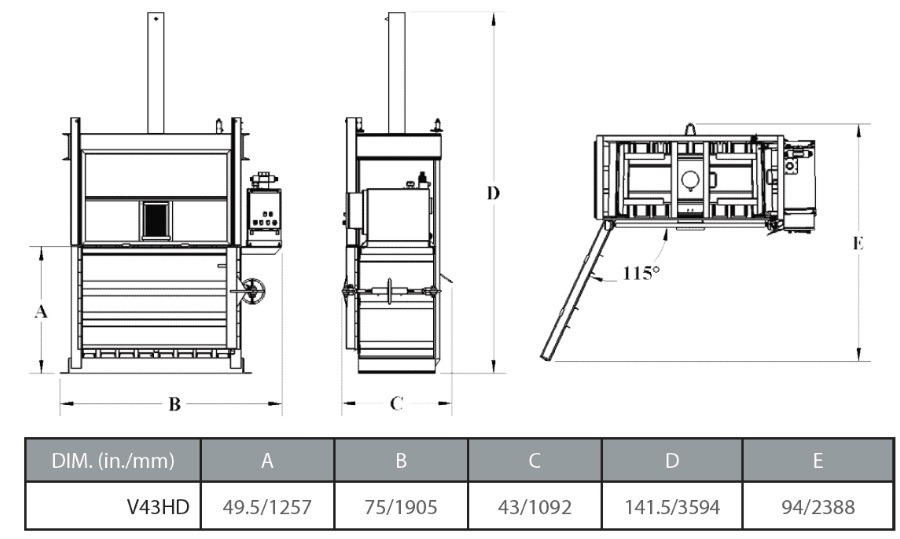

When space is an issue, this small-footprint baler is just 141” tall, 45″ deep, and 75” wide. It produces bale weights up to 800 lbs of old corrugated cardboard. And is the choice of numerous customers who have width restrictions in their recycling operations.

Available Options
  • Counter Weighted Floppy Retainer Dogs,
  • Feed Chute,
  • Oil Heater,
  • Rear Feed Opening, Front Eject,
  • Slotted Front Door,
  • Weather Proof Package,
  • Wire Guides (allows for front bale tie-off)

Lead Time: 2-4 weeks

Discounts Available – Call Now!

BUY NOW



When space is an issue, this small-footprint baler is just 141” tall, 45″ deep, and 75” wide. It produces bale weights up to 800 lbs of old corrugated cardboard. And is the choice of numerous customers who have width restrictions in their recycling operations.

  • Ideal for: Big Box Retailers, Commissaries, Distribution Centers, Grocery Stores, Home Retailers, Hospitals, National Accounts, Pharmacies, Recyclers, Schools, Universities, Warehouses

Additional information

Color/Finish
  • Maroon
  • Royal Blue
  • Black
  • Forest Green
  • White
  • Bright Cyan
  • Bright Red
  • Brown
  • Dark Gray
  • Orange
  • Peach
  • Sea Green
  • Sky Blue
  • Slate Gray

Download all the specifications for this product.

DOWNLOAD PDF

Reviews

There are no reviews yet.

Be the first to review “BACE Vertical Baler V43HD”

Your email address will not be published. Required fields are marked *

Performance Specs

Description Value
Nominal Bale Size 48″ x 30″ x 48″
Bale Weight Up to 800 lbs OCC
Bale Volume 40 cu. ft.
No. of Bale Tie Slots 6
Compact Force lbs – Normal / Maximum 62,203
Platen Pressure 43 PSI
Average Cycle Time 49 Seconds
Loading Height 49.50″
Ejector System Semi-Automatic
Full Bale Switch Standard



Hydraulic / Electrical Specs

Description Value
Motor HP 10
Voltage 3 Phase 208V, 230V, 480V
Full Load Amps (A=Amps) 32A, 28A, 14A
Pump GPM 12 / 4 HiLo
Normal System Pressure PSI 2200
Cylinder Bore x Stroke 6″ x 48″
Hydraulic Tank-Capacity Gallons 22
Additional hydraulic/electrical configurations are available. Please contact BACE for more information.
